DG2038

Dual SPST Analog Switch

DG2038 Features

* Low Voltage Operation (1.8 V to 5.5 V)

* Low On-Resistance - rDS(on): 3.0 Ω

* Fast Switching - 12 ns

* Low Charge Injection - QINJ: 10 pC

* Low Power Consumption

* TTL/CMOS Compatible

* SOT23-8 and MSOP-8 Packages BENEFITS

* Reduced

DG2038 General Description

The DG2037/2038/2039 are dual single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analog signals. Combining low power, fast switching, low on-resistance (rDS(on): 3.0 Ω at 2.7 V) and small physical size, the DG2037/2038/2039 are ideal for portable and ba.

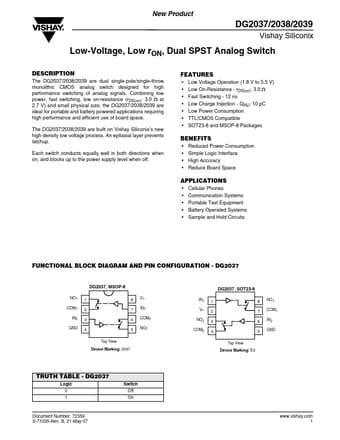

DG2038 Datasheet (91.50 KB)

Preview of DG2038 PDF

Datasheet Details

Part number:

DG2038

Manufacturer:

Vishay ↗

File Size:

91.50 KB

Description:

Dual spst analog switch.
