DG2039, DG2037 Datasheet - Vishay

DG2039 Dual SPST Analog Switch

The DG2037/2038/2039 are dual single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analog signals. Combining low power, fast switching, low on-resistance (rDS(on): 3.0 Ω at 2.7 V) and small physical size, the DG2037/2038/2039 are ideal for portable and ba.

DG2039 Features

* Low Voltage Operation (1.8 V to 5.5 V)

* Low On-Resistance - rDS(on): 3.0 Ω

* Fast Switching - 12 ns

* Low Charge Injection - QINJ: 10 pC

* Low Power Consumption

* TTL/CMOS Compatible

* SOT23-8 and MSOP-8 Packages BENEFITS

* Reduced

DG2037-Vishay.pdf

This datasheet PDF includes multiple part numbers: DG2039, DG2037. Please refer to the document for exact specifications by model.

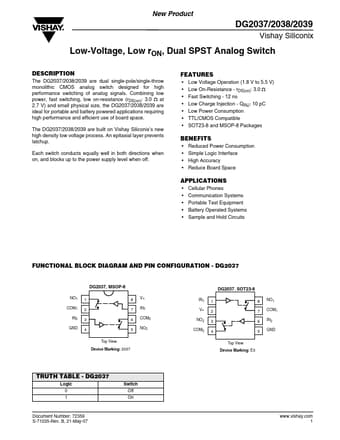

DG2039 Datasheet Preview Page 2 DG2039 Datasheet Preview Page 3
