HS0038A2 - Photo Modules Infrared Receiver

Datasheet Summary

Description

The HS0038A2.

series are miniaturized receivers for infrared remote control systems.

PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter.

The demodulated output signal can directly be decoded by a microprocessor.

Features

D Photo detector and preamplifier in one package D Internal filter for PCM frequency D Improved shielding against electrical field disturbance D TTL and CMOS compatibility D Output active low D Low power consumption D High immunity against ambient light D Continuous data transmission possible (800 bit/s) D Suitable burst length ≥10 cycles/burst Block Diagram 2 Input Control Circuit 30 kW 3 PIN AGC Band Pass Demodulator 1 GND OUT VS 16108 Document Number 82110 Rev. 3, 10-Mar-00 www. vishay. de.

Vishay Siliconix

📥 Download Datasheet

Datasheet Details

Part number	HS0038A2
Manufacturer	Vishay Siliconix
File Size	124.95 KB
Description	Photo Modules Infrared Receiver
Datasheet	HS0038A2 Datasheet
Additional preview pages of the HS0038A2 datasheet.

📁 Similar Datasheet

HS0038 - Infrared Receiver (PDGDLED)
HS0038 - HS0038 (ETC)
HS00-00041 - 10Base Networking Products (ETC)
HS00-000444 - 10Base Networking Products (ETC)
HS00-00078 - 10Base Networking Products (ETC)
HS00-000914 - T1/CEPT/ISDN-Pri Telecom Products (Bi technologies)
HS00-000994 - 10Base Networking Products (ETC)
HS00-00151 - T1/CEPT/ISDN-Pri Telecom Products (Bi technologies)
HS00-00152 - T1/CEPT/ISDN-Pri Telecom Products (Bi technologies)
HS00-00161 - T1/CEPT/ISDN-Pri Telecom Products (Bi technologies)

Other Datasheets by Vishay Siliconix

HS0038B - Photo Modules Infrared Receiver

Full PDF Text Transcription

Click to expand full text

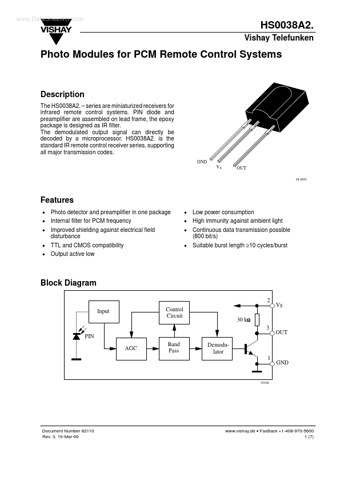

www.DataSheet4U.com HS0038A2. Vishay Telefunken Photo Modules for PCM Remote Control Systems Description The HS0038A2. – series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. HS0038A2. is the standard IR remote control receiver series, supporting all major transmission codes.
