ILD1207T Optocoupler

The 110 °C rated ILD1205T/1206T/1207T are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The I.

ILD1207T Features

* Operating temperature from - 55 °C to + 110 °C

* Two Channel Coupler

* SOIC-8 Surface Mountable Package

* Isolation Test Voltage, 4000 VRMS

* Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering

* Lead (Pb)-free component

* Componen

ILD1205T_VishaySiliconix.pdf

This datasheet PDF includes multiple part numbers: ILD1207T, ILD1205T. Please refer to the document for exact specifications by model.

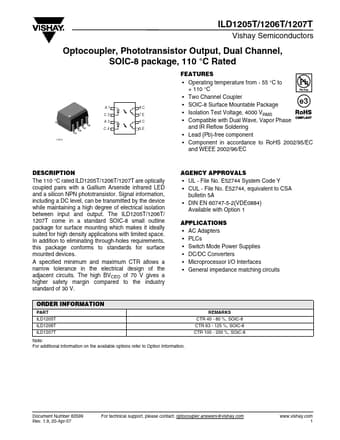

ILD1207T Datasheet Preview Page 2 ILD1207T Datasheet Preview Page 3

Datasheet Details

Part number:

ILD1207T, ILD1205T

Manufacturer:

Vishay ↗ Siliconix

File Size:

196.38 KB

Description:

Optocoupler.

Note:

This datasheet PDF includes multiple part numbers: ILD1207T, ILD1205T.
Please refer to the document for exact specifications by model.
