IRFU9024, IRFR9024 - Power MOSFET

IRFU9024 Description

IRFR9024, IRFU9024, SiHFR9024, SiHFU9024 www.vishay.com Vishay Siliconix Power MOSFET DPAK (TO-252) D IPAK (TO-251) D S G GS GD S D P-Channel.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFU9024 Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* Surface-mount (IRFR9024, SiHFR9024)
* Straight lead (IRFU9024, SiHFU9024)
* Available in tape and reel Available
* P-channel
* Fast switching
* Material categorization: for d

IRFU9024 Applications

* Power dissipation levels up to 1.5 W are possible in typical surface-mount applications. ORDERING INFORMATION Package DPAK (TO-252) Lead (Pb)-free and halogen-free SiHFR9024-GE3 IRFR9024PbF-BE3 Lead (Pb)-free IRFR9024PbF Note a. See device orientation DPAK (TO-252) SiHFR9024TR-GE3 a IRFR90

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFU9024, IRFR9024. Please refer to the document for exact specifications by model.

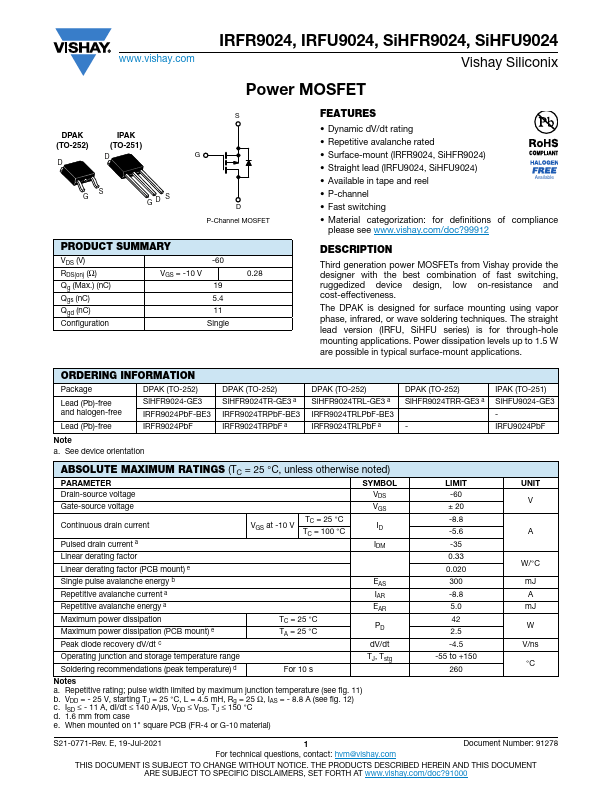

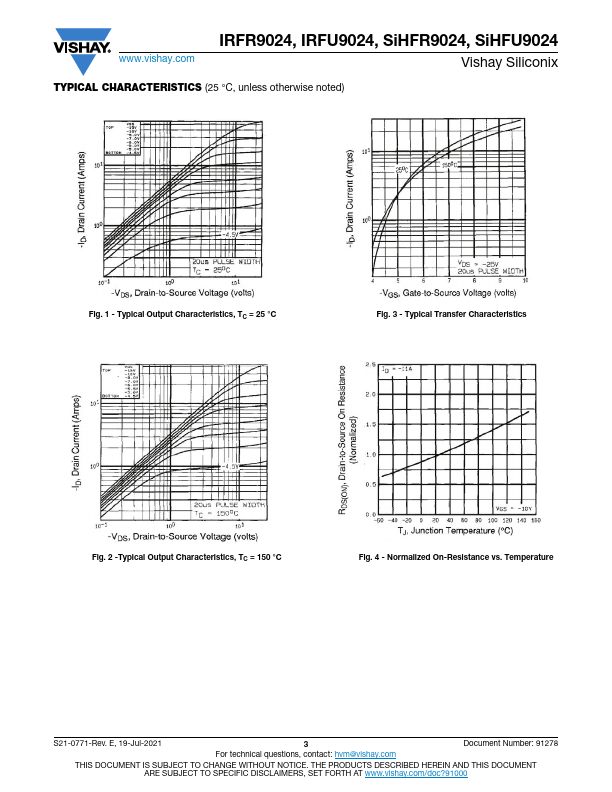

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFU9024, IRFR9024
Manufacturer
Vishay ↗ Siliconix
File Size
1.21 MB
Datasheet
IRFR9024_VishaySiliconix.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFU9024, IRFR9024.
Please refer to the document for exact specifications by model.
