IRFU9120, IRFR9120 - Power MOSFET

IRFU9120 Description

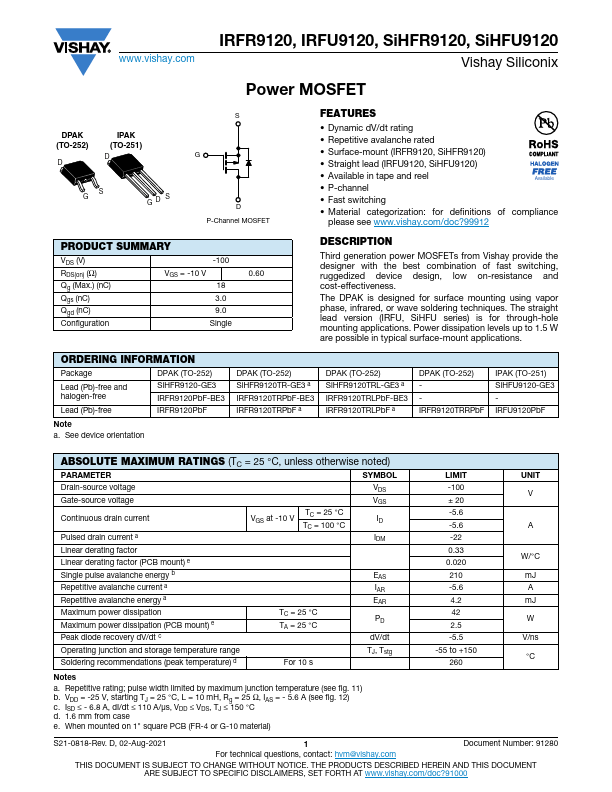

IRFR9120, IRFU9120, SiHFR9120, SiHFU9120 www.vishay.com Vishay Siliconix Power MOSFET DPAK (TO-252) D IPAK (TO-251) D S G GS GD S D P-Channel.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFU9120 Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* Surface-mount (IRFR9120, SiHFR9120)
* Straight lead (IRFU9120, SiHFU9120)
* Available in tape and reel
* P-channel Available
* Fast switching
* Material categorization: for d

IRFU9120 Applications

* Power dissipation levels up to 1.5 W are possible in typical surface-mount applications. ORDERING INFORMATION Package DPAK (TO-252) Lead (Pb)-free and halogen-free SiHFR9120-GE3 IRFR9120PbF-BE3 Lead (Pb)-free IRFR9120PbF Note a. See device orientation DPAK (TO-252) SiHFR9120TR-GE3 a IRFR91

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFU9120, IRFR9120. Please refer to the document for exact specifications by model.

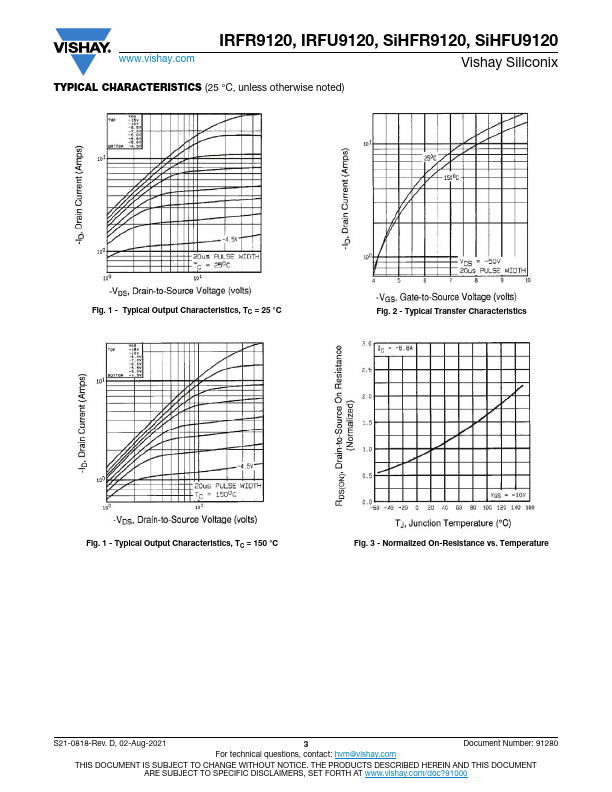

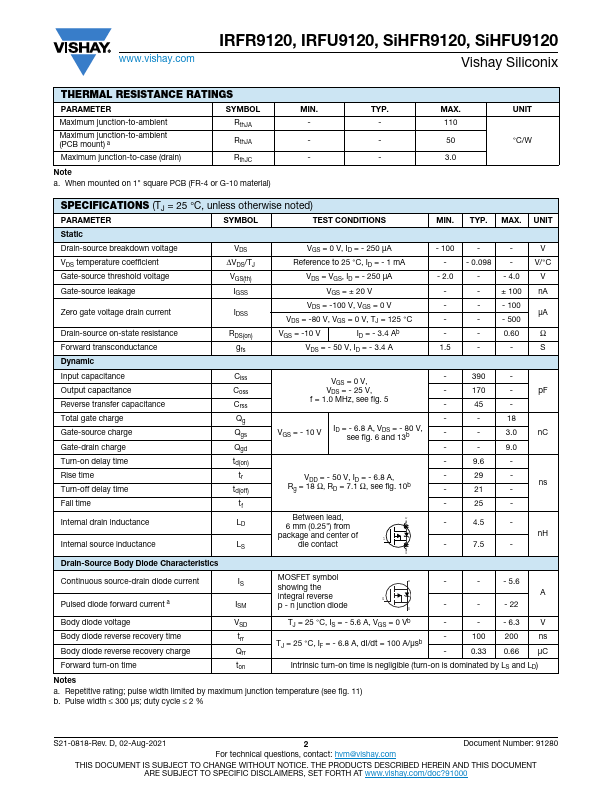

datasheet Preview Page 2 datasheet Preview Page 3
