LH1262CAC, LH1262C, Dual Photovoltaic MOSFET Driver Solid State Relay

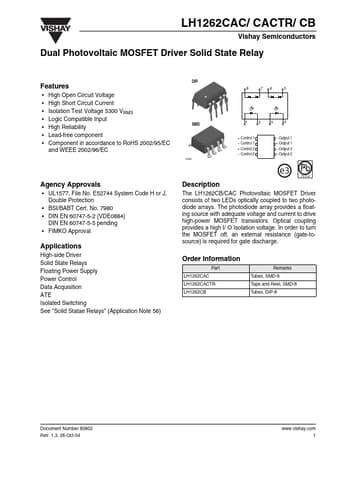

LH1262CAC/ CACTR/ CB Vishay Semiconductors Dual Photovoltaic MOSFET Driver Solid State Relay DIP 8 7 6 5 .
The LH1262CB/CAC Photovoltaic MOSFET Driver consists of two LEDs optically coupled to two photodiode arrays.

datasheet Preview Page 1 from Datasheet4u.com

LH1262C_VishaySiliconix.pdf

LH1262CAC Datasheet Preview — This datasheet PDF includes multiple part numbers: LH1262CAC, LH1262C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LH1262CAC, LH1262C

Manufacturer:

Vishay ↗ Siliconix

File Size:

163.12 KB

Description:

Dual Photovoltaic MOSFET Driver Solid State Relay

Note:

This datasheet PDF includes multiple part numbers: LH1262CAC, LH1262C.
Please refer to the document for exact specifications by model.

Features

* High Open Circuit Voltage High Short Circuit Current Isolation Test Voltage 5300 VRMS Logic Compatible Input High Reliability Lead-free component Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC i179020 SMD 1 2 3

Applications

* High-side Driver Solid State Relays Floating Power Supply Power Control Data Acquisition ATE Isolated Switching See "Solid Statae Relays" (Application Note 56) Order Information Part LH1262CAC LH1262CACTR LH1262CB Remarks Tubes, SMD-8 Tape and Reel, SMD-8 Tubes, DIP-8 Document Number 83802 Rev. 1.
