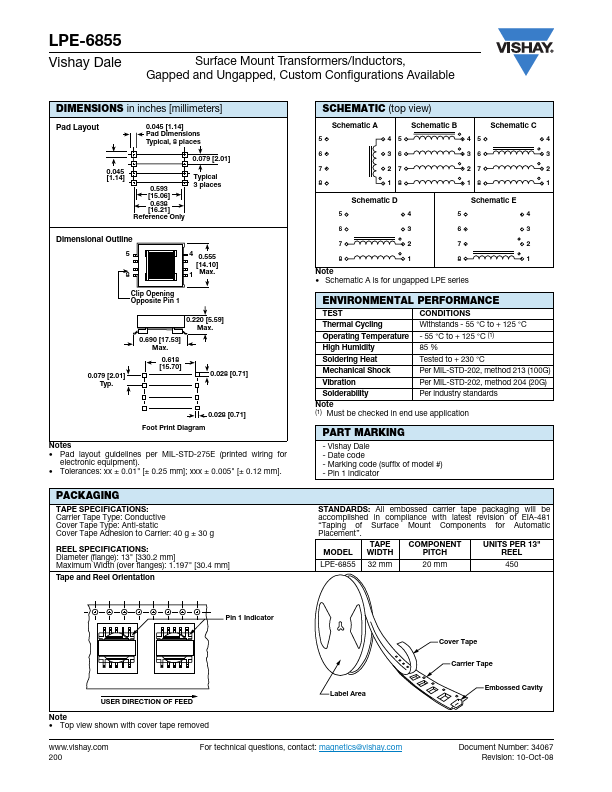

LPE-6855, Surface Mount Transformers/Inductors

LPE 6855 1000 µH ± 30 % A ER e2 MODEL SIZE INDUCTANCE VALUE INDUCTANCE TOLERANCE CORE PACKAGE CODE JEDEC LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER L P E 6 8 SIZE 5 5 E R 1 0 INDUCTANCE VALUE 2 N TOL.

U CORE PRODUCT FAMILY PACKAGE CODE NOTE Series is also available with SnPb terminations by usin

LPE-6855 Vishay Dale Surface Mount Transformers/Inductors, Gapped and Ungapped, Custom Configurations Available ELECTRICAL SPECIFICATIONS (Multiple winds are connected in parallel) Inductance Range: 10 µH to 150 000 µH, measured at 0.10 V RMS at 10 kHz without DC current, using an HP 4263 or HP 4284A impedance analyzer DC Resistance Range: 0.02 Ω to 46.2 Ω, measured at + 25 °C ± 5 °C Rated Current Range: 3.20 amps to 0.17 amps Dielectric Withstanding Voltage: 500 V RMS, 60 Hz, 5 seconds RoHS C
