LS101A Small Signal Schottky Barrier Diodes

LS101A Description

www.vishay.com LS101A, LS101B, LS101C Vishay Semiconductors Small Signal Schottky Diodes MECHANICAL DATA Case: QuadroMELF SOD-80 Weight: approx.34.

LS101A Features

* Integrated protection ring against static discharge
* Low capacitance
* Low leakage current
* Low forward voltage drop
* AEC-Q101 qualified

LS101A Applications

* HF-detector
* Protection circuit
* Diode for low currents with a low supply voltage
* Small battery charger
* Power supplies
* DC/DC converter for notebooks PARTS TABLE PART TYPE DIFFERENTATION LS101A LS101B LS101C VR = 60 V, VF at IF = 1 mA max

📥 Download Datasheet

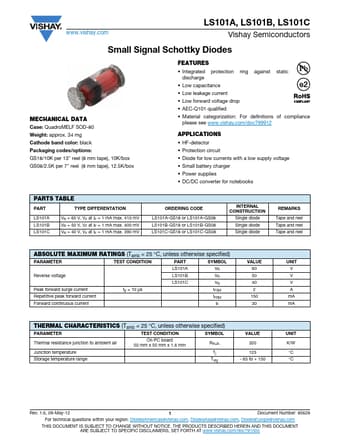

Preview of LS101A PDF
