LS101C Small Signal Schottky Barrier Diodes

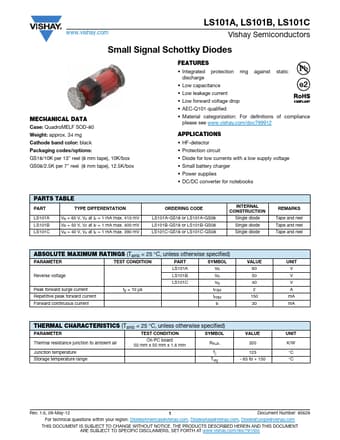

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com LS101A, LS101B, LS101C Vishay Semiconductors Small Signal Schottky Diodes MECHANICAL DATA Case: QuadroMELF SOD-80 Weight: approx.34.

📥 Download Datasheet

Preview of LS101C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LS101C
Manufacturer
Vishay ↗ Siliconix
File Size
102.61 KB
Datasheet
LS101C_VishaySiliconix.pdf
Description
Small Signal Schottky Barrier Diodes

Features

* Integrated protection ring against static discharge
* Low capacitance
* Low leakage current
* Low forward voltage drop
* AEC-Q101 qualified

Applications

* HF-detector
* Protection circuit
* Diode for low currents with a low supply voltage
* Small battery charger
* Power supplies
* DC/DC converter for notebooks PARTS TABLE PART TYPE DIFFERENTATION LS101A LS101B LS101C VR = 60 V, VF at IF = 1 mA max
