MBR3045C Datasheet - Vishay Siliconix

MBR3045C, Dual Schottky Rectifiers

MBR3045CT, MBRF3045CT & MBRB3045CT Series New Product Vishay Semiconductors formerly General Semiconductor Dual Schottky Rectifiers Reverse Voltage .

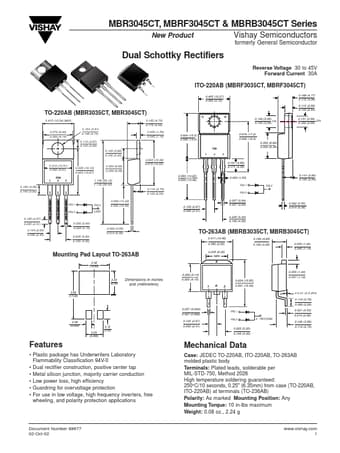

datasheet Preview Page 1 from Datasheet4u.com

MBR3045C_VishaySiliconix.pdf

Preview of MBR3045C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

MBR3045C

Manufacturer:

Vishay ↗ Siliconix

File Size:

46.46 KB

Description:

Dual Schottky Rectifiers

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection

Applications

* Mechanical Data Case: JEDEC TO-220AB, ITO-220AB, TO-263AB molded plastic body Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 High temperature soldering guaranteed: 250°C/10 seconds, 0.25" (6.35mm) from case (TO-220AB, ITO-220AB) at terminals (TO-236AB) Polarity: As marked Mounting
