MBR3045A - SCHOTTKY BARRIER DIODE

MBR3045A Description

R SCHOTTKY BARRIER DIODE MBR3045A MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 30（2×15）A 45 V 150 ℃ 0.54V （@Tj=125℃） z z APPLICATI.
of Changes 2010-03-22 200911B 201003C Changed TO-220F to TO-220HF.

MBR3045A Features

* zCommon cathode structure zLow power loss, high efficiency zHigh Operating Junction Temperature zGuard ring for overvoltage protection，High reliability zRoHS product TO-3PB TO-22OHF ORDER MESSAGE Order codes Marking Package MBR3045AZ MBR3045A TO-220 MBR3045AZR MBR3045A TO-220 MBR3045A

📥 Download Datasheet

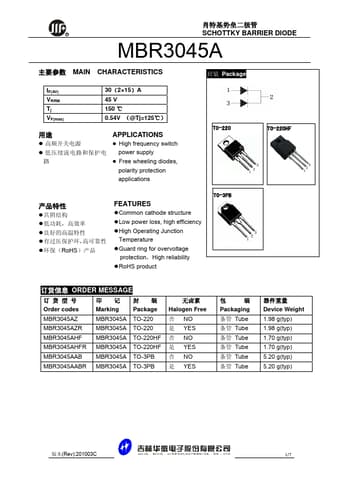

Preview of MBR3045A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR3045A
Manufacturer
JILIN SINO
File Size
408.85 KB
Datasheet
MBR3045A-JILINSINO.pdf
Description
SCHOTTKY BARRIER DIODE
