MBR2060

SCHOTTKY BARRIER DIODE

MBR2060 Features

* Common cathode structure

* Low power loss, high efficiency

* High Operating Junction Temperature

* Guard ring for overvoltage protection,High reliability

* RoHS product TO-220MF-K1 TO-22OHF TO-263 ORDER MESSAGE Order codes - - - Halogen-Tube Halogen Free-Tube Halogen-R

MBR2060 Datasheet (702.75 KB)

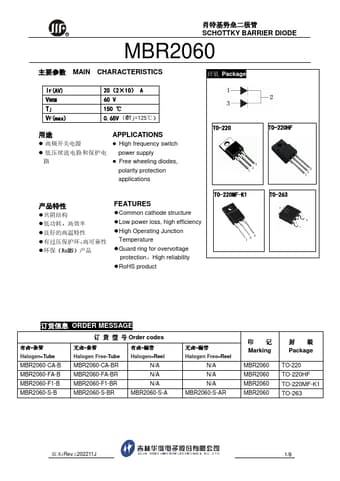

Preview of MBR2060 PDF

Datasheet Details

Part number:

MBR2060

Manufacturer:

JILIN SINO

File Size:

702.75 KB

Description:

Schottky barrier diode.
R SCHOTTKY BARRIER DIODE MBR2060 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 20(2×10) A 60 V 150 ℃ 0.65V (@Tj=125℃)
*
* .
