MBR340 - SCHOTTKY BARRIER DIODE

MBR340 Description

R SCHOTTKY BARRIER DIODE MBR340 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 3A 40 V 150 ℃ 0.48V （@Tj=125℃） DO-201AD * 、 *.

MBR340 Features

* Axial Lead and Surface Mounting Rectifier
* Low power loss, high efficiency
* High Operating Junction Temperature
* Guard ring for overvoltage protection，High reliability
* RoHS product ORDER MESSAGE Order codes - - - Halogen-Tube Halogen Free-Tube Halogen-Reel N/A N/A

MBR340 Applications

* Low voltage, high frequency rectifier
* Free wheeling diodes, polarity protection applications SMA SMB SMBF SMC
* ，
* ，

📥 Download Datasheet

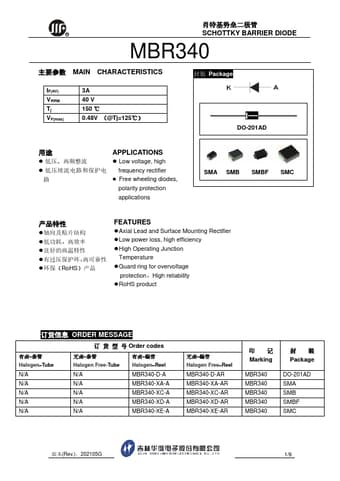

Preview of MBR340 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR340
Manufacturer
JILIN SINO
File Size
524.77 KB
Datasheet
MBR340-JILINSINO.pdf
Description
SCHOTTKY BARRIER DIODE
