MBR240 - SCHOTTKY BARRIER DIODE

MBR240 Description

R SCHOTTKY BARRIER DIODE MBR240 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 2A 40 V 150 ℃ 0.47V （@Tj=125℃） DO-41 l 、 l APPLICA.
of Changes 20151028 201405A 201510B Corrected the mistakes.

MBR240 Features

* lAxial Lead and Surface Mounting Rectifier lLow power loss, high efficiency lHigh Operating Junction Temperature lGuard ring for overvoltage protection，High reliability ORDER MESSAGE Order codes Marking Package MBR240Y MBR240 DO-41 MBR240YR MBR240 DO-41 MBR240Q MBR240 DO-15 MBR2

📥 Download Datasheet

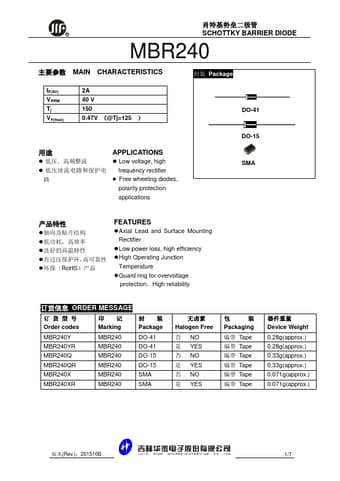

Preview of MBR240 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR240
Manufacturer
JILIN SINO
File Size
254.47 KB
Datasheet
MBR240-JILINSINO.pdf
Description
SCHOTTKY BARRIER DIODE
