SFH6756T, SFH6755T High Speed Optocoupler

SFH6756T Description

www.vishay.com SFH6755T, SFH6756T, SFH6757T Vishay Semiconductors High Speed Optocoupler, 10 MBd, Dual, SOIC-8 Package 18921-16 A1 1 C1 2 C2 3 A2 .
The SFH675xT-series, is a dual channel 10 MBd optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detect.

SFH6756T Features

* Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 100 V/μs
* External creepage distance > 5 mm
* High speed: 10 Mbd typical
* + 5 V CMOS compatibility
* Guaranteed AC and DC performance over temperature: - 40 °C to + 100 °C temperature range
* Pure

SFH6756T Applications

* Microprocessor system interface
* PLC, ATE input/output isolation
* Computer peripheral interface
* Digital fieldbus isolation: CC-link, DeviceNet, profibus, SDS
* High speed A/D and D/A conversion
* AC plasma display panel level shifting
* M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SFH6756T, SFH6755T. Please refer to the document for exact specifications by model.

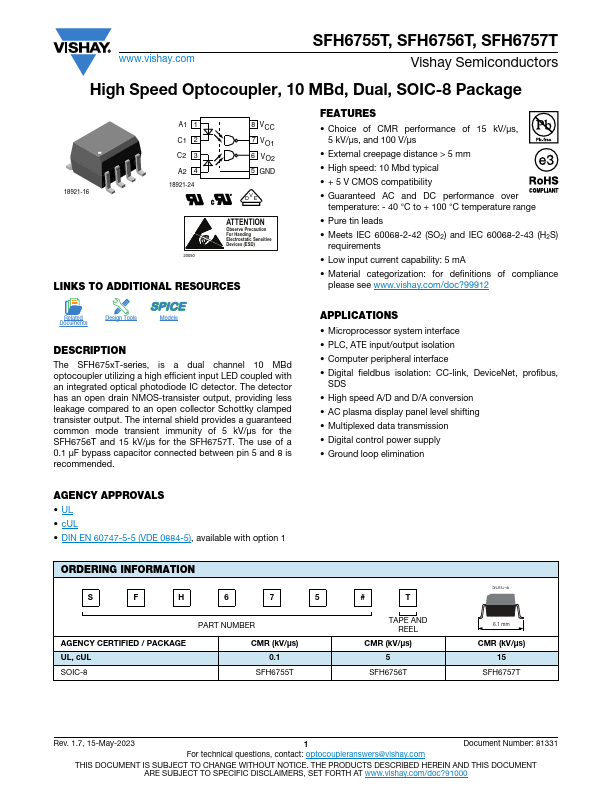

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFH6756T, SFH6755T
Manufacturer
Vishay ↗ Siliconix
File Size
172.78 KB
Datasheet
SFH6755T_VishaySiliconix.pdf
Description
High Speed Optocoupler
Note
This datasheet PDF includes multiple part numbers: SFH6756T, SFH6755T.
Please refer to the document for exact specifications by model.
