SS210, SS29 High Voltage Surface Mount Schottky Rectifier

SS210 Description

www.vishay.com SS29, SS210 Vishay General Semiconductor High Voltage Surface-Mount Schottky Rectifier SMB (DO-214AA) Cathode Anode LINKS TO ADDI.

SS210 Features

* Low profile package Available
* Ideal for automated placement
* Guardring for overvoltage protection
* Low power losses, high efficiency
* Low forward voltage drop
* High surge capability
* Meets MSL level 1, per J-STD-020, LF maximum

SS210 Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: SMB (DO-214AA) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/NHE3_X - RoHS-compliant, AEC-Q101 qu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS210, SS29. Please refer to the document for exact specifications by model.

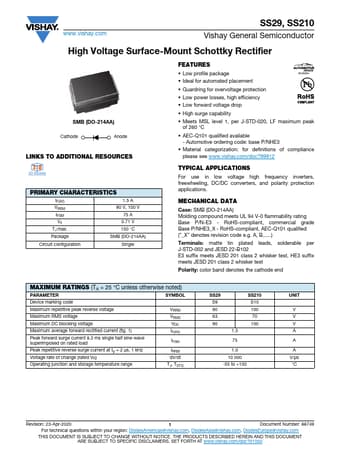

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS210, SS29
Manufacturer
Vishay ↗ Siliconix
File Size
95.73 KB
Datasheet
SS29_VishaySiliconix.pdf
Description
High Voltage Surface Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SS210, SS29.
Please refer to the document for exact specifications by model.
