SS3H9 - High Voltage Surface-Mount Schottky Rectifier

Product Overview

Vishay Siliconix

📥 Download Datasheet

SS3H9 High Voltage Surface-Mount Schottky Rectifier by Vishay Siliconix - Datasheet Preview — Datasheet preview – SS3H9

Datasheet Details

Part number	SS3H9
Manufacturer	Vishay Siliconix
File Size	91.80 KB
Description	High Voltage Surface-Mount Schottky Rectifier
Datasheet	SS3H9 Datasheet

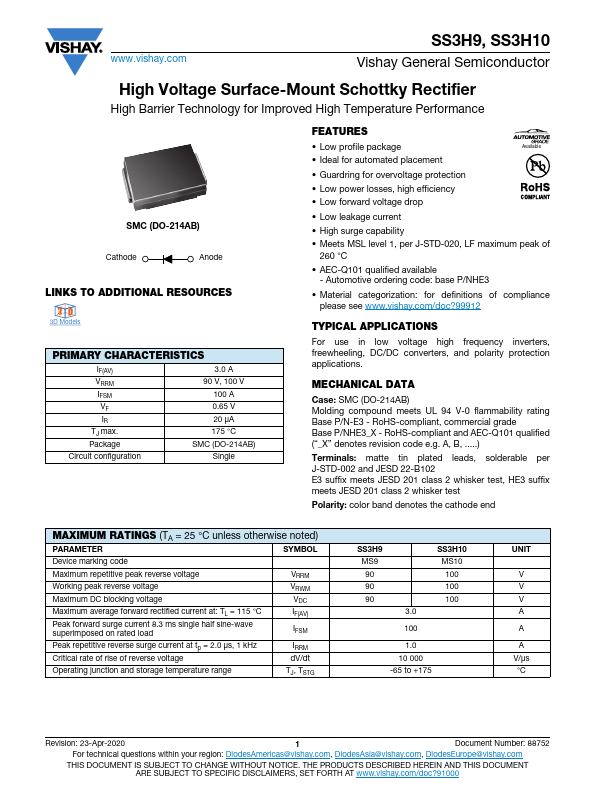

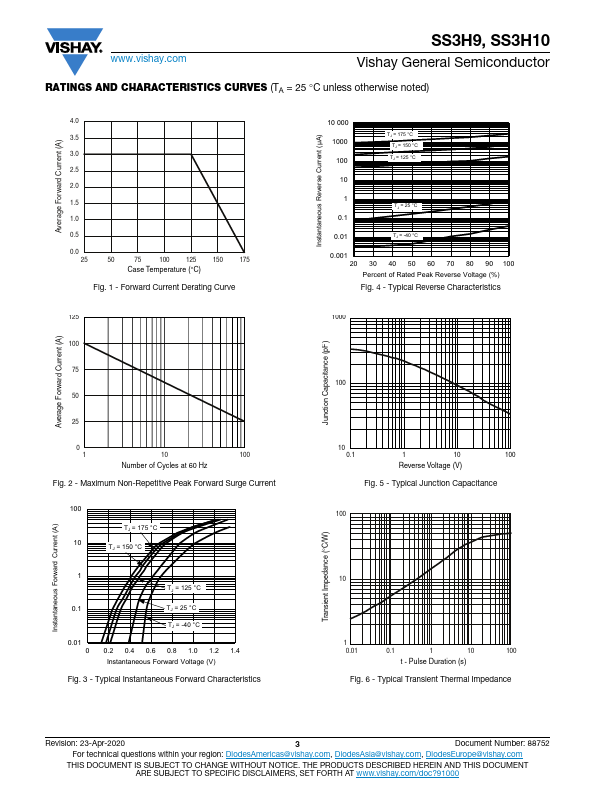

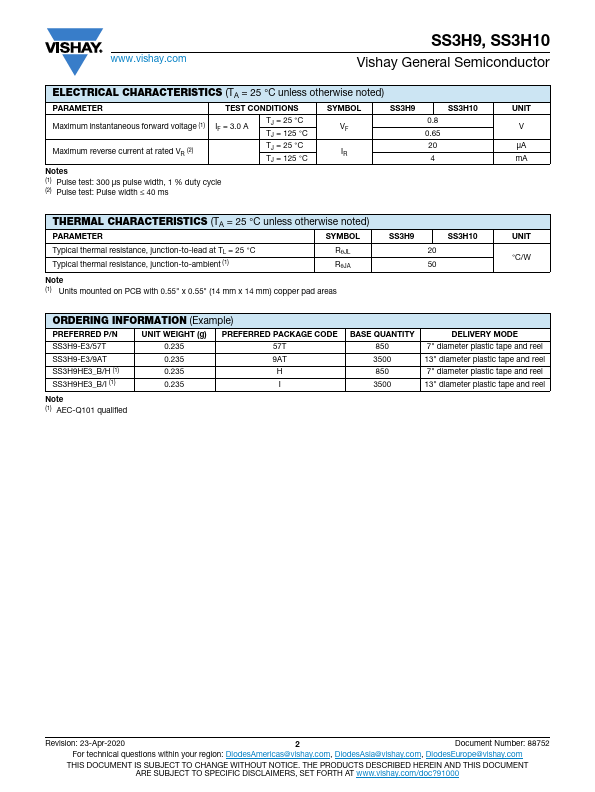

Additional preview pages of the SS3H9 datasheet.

Product details

Features

Low profile package Available.
Ideal for automated placement.
Guardring for overvoltage protection.
Low power losses, high efficiency.
Low forward voltage drop.
Low leakage current.
High surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3.
Material categorization: for definitions of compliance please.
