ST1000C20K, ST1000C12K0 (ST1000CxxK) Phase Control Thyristors

Vishay Siliconix

Description

www.DataSheet.co.kr ST1000C..K Series Vishay Semiconductors Phase Control Thyristors (Hockey PUK Version), 1473 A .

📥 Download Datasheet

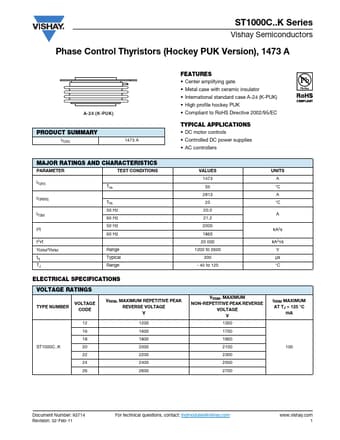

ST1000C20K Datasheet Preview — This datasheet PDF includes multiple part numbers: ST1000C20K, ST1000C12K0. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ST1000C20K, ST1000C12K0
Manufacturer: Vishay ↗ Siliconix
File Size: 205.39 KB
Datasheet: ST1000C12K0_VishaySiliconix.pdf
Description: (ST1000CxxK) Phase Control Thyristors
Note: This datasheet PDF includes multiple part numbers: ST1000C20K, ST1000C12K0.
Please refer to the document for exact specifications by model.

Features

* Center amplifying gate
* Metal case with ceramic insulator
* International standard case A-24 (K-PUK)
* High profile hockey PUK A-24 (K-PUK)

Applications

* PRODUCT SUMMARY IT(AV) 1473 A
* DC motor controls
* Controlled DC power supplies
* AC controllers MAJOR RATINGS AND CHARACTERISTICS PARAMETER IT(AV) IT(RMS) ITSM I2t I2t VDRM/VRRM tq TJ Range Typical Range TEST CONDITIONS VALUES 1473 Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz 55 2913
