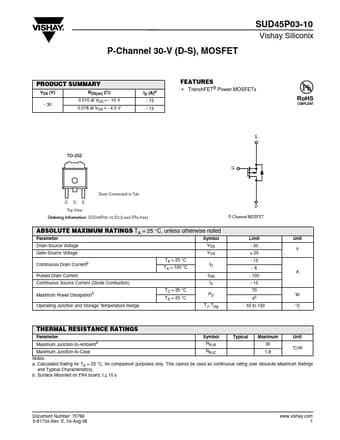

* TrenchFET® Power MOSFETs RoHS COMPLIANT TO-252 S G Drain Connected to Tab GDS Top View Ordering Information: SUD45P03-10-E3 (Lead (Pb)-free) D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Volta
SUD45P03-10 Datasheet (96.00 KB)
SUD45P03-10
Vishay ↗ Siliconix
96.00 KB
P-channel mosfet.
P-Channel 30-V (D-S), MOSFET
SUD45P03-10
Vishay Siliconix
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
- 30 0.010 at VGS = - 10 V 0.018 at VGS = - 4.5 V
.
