SUD45P03-15A P-Channel MOSFET

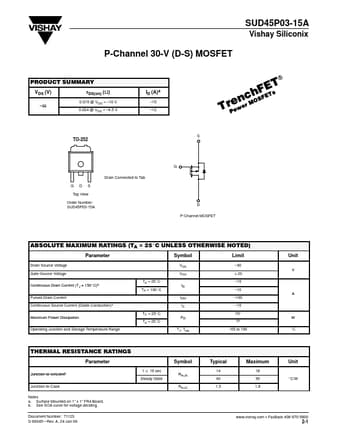

SUD45P03-15A Vishay Siliconix P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (W) 0.015 @ VGS = 10 V 30 0.024 @ VGS = 4.5 V TO-252 ID (A)a 15 12 S GDS Top View Order Number: SUD45P03-15A Drain Connected to Tab G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150_C)b Pulsed Drain Current Continuous So.

SUD45P03-15A Datasheet (63.22 KB)
