SUU50N03-10P Datasheet - Vishay Siliconix

SUU50N03-10P N-Channel MOSFET

www.DataSheet4U.net SUU50N03-10P Vishay Siliconix N-Channel 30-V (D-S), 175_C, MOSFET PWM Optimized PRODUCT SUMMARY V(BR)DSS (V) 30 rDS(on) (Ω) 0.010 @ VGS = 10 V 0.014 @ VGS = 4.5 V ID (A)a 20 18 TO-251 D G and DRAIN-TAB G D S Top View Order Number: SUU50N03-10P S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C)a Pulsed Drain Current Continuous Source Current (Diode Co.

SUU50N03-10P_VishaySiliconix.pdf

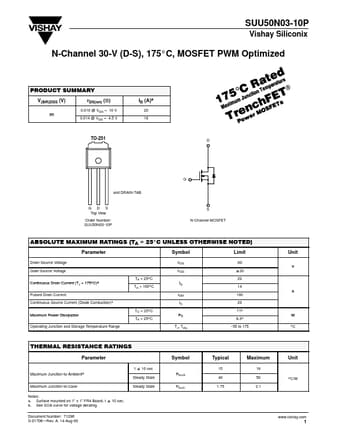

Preview of SUU50N03-10P PDF
SUU50N03-10P Datasheet Preview Page 2 SUU50N03-10P Datasheet Preview Page 3

Datasheet Details

Part number:

SUU50N03-10P

Manufacturer:

Vishay ↗ Siliconix

File Size:

96.33 KB

Description:

N-channel mosfet.
