SUU09N10-76P

N-Channel 100 V (D-S) MOSFET

Vishay

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Vishay Intertechnologies	SUU09N10-76P-GE3	- Bulk (Alt: SUU09N10-76P-GE3)	Avnet Americas	0	0	$0

Download Datasheet (114.01 KB)

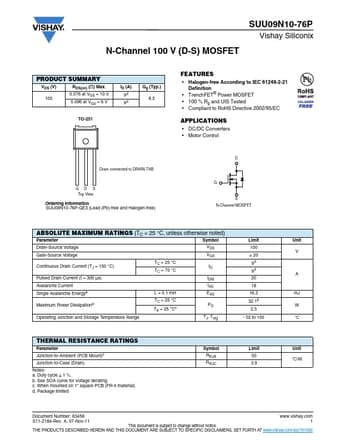

SUU09N10-76P Datasheet Preview — Preview of SUU09N10-76P Datasheet

Datasheet Details

Part number:

SUU09N10-76P

Manufacturer:

Vishay ↗

File Size:

114.01 KB

Description:

N-channel 100 v (d-s) mosfet.
SUU09N10-76P Vishay Siliconix N-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Ma.
x. 0.076 at VGS = 10 V 100 0.096 at VGS = 6 V ID (A) 9d 9d Qg (Typ.) 8.5 TO-251 FEATURES * Halo.

✔ SUU09N10-76P Features

Halogen-free According to IEC 61249-2-21 Definition
TrenchFET® Power MOSFET
100 % Rg and UIS Tested
Compliant to RoHS Directive 2002/95/EC APPLICATIONS
DC/DC Co

✔ SUU09N10-76P Application

DC/DC Converters
Motor Control Drain connected to DRAIN-TAB GDS Top View Ordering Information SUU09N10-
