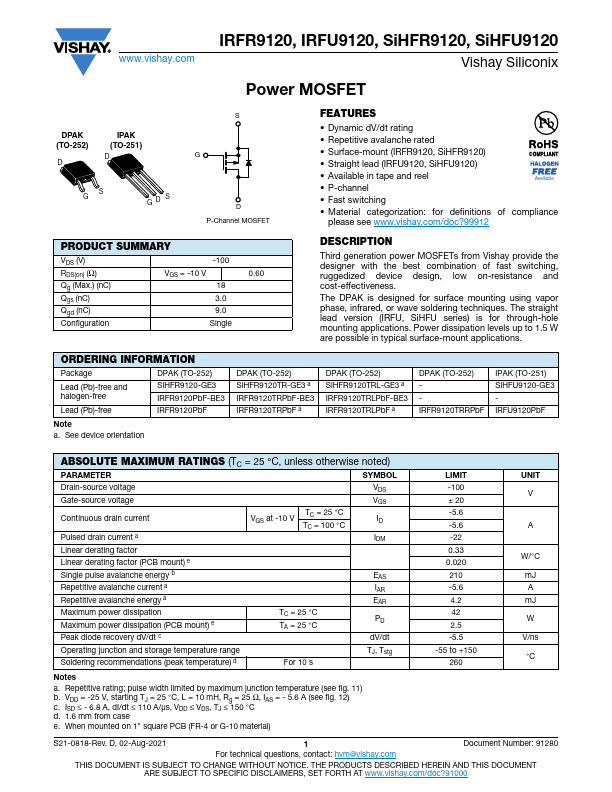

SiHFR9120 Power MOSFET

IRFR9120, IRFU9120, SiHFR9120, SiHFU9120 www.vishay.com Vishay Siliconix Power MOSFET DPAK (TO-252) D IPAK (TO-251) D S G GS GD S D P-Channel.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

SiHFR9120_VishaySiliconix.pdf

SiHFR9120 Datasheet Preview — Preview of SiHFR9120 PDF

Datasheet Details

Part number:

SiHFR9120

Manufacturer:

Vishay ↗ Siliconix

File Size:

1.15 MB

Description:

Power MOSFET

Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* Surface-mount (IRFR9120, SiHFR9120)
* Straight lead (IRFU9120, SiHFU9120)
* Available in tape and reel
* P-channel Available
* Fast switching
* Material categorization: for d

Applications

* Power dissipation levels up to 1.5 W are possible in typical surface-mount applications. ORDERING INFORMATION Package DPAK (TO-252) Lead (Pb)-free and halogen-free SiHFR9120-GE3 IRFR9120PbF-BE3 Lead (Pb)-free IRFR9120PbF Note a. See device orientation DPAK (TO-252) SiHFR9120TR-GE3 a IRFR91
