TEMD5010X01 - Silicon PIN Photodiode

TEMD5010X01 Description

www.vishay.com TEMD5010X01 Vishay Semiconductors Silicon PIN Photodiode 20535 .
TEMD5010X01 is a high speed and high sensitive PIN photodiode.

TEMD5010X01 Features

* Package type: surface mount
* Package form: top view
* Dimensions (L x W x H in mm): 5 x 4.24 x 1.12
* Radiant sensitive area (in mm2): 7.5
* AEC-Q101 qualified
* High photo sensitivity
* High radiant sensitivity
* Suitable for visibl

TEMD5010X01 Applications

* High speed photo detector PRODUCT SUMMARY COMPONENT TEMD5010X01 Ira (μA) 55 Note
* Test conditions see table “Basic Characteristics” ϕ (deg) ± 65 λ0.1 (nm) 430 to 1100 ORDERING INFORMATION ORDERING CODE TEMD5010X01 Note
* MOQ: minimum order quantity PACKAGING Tape a

📥 Download Datasheet

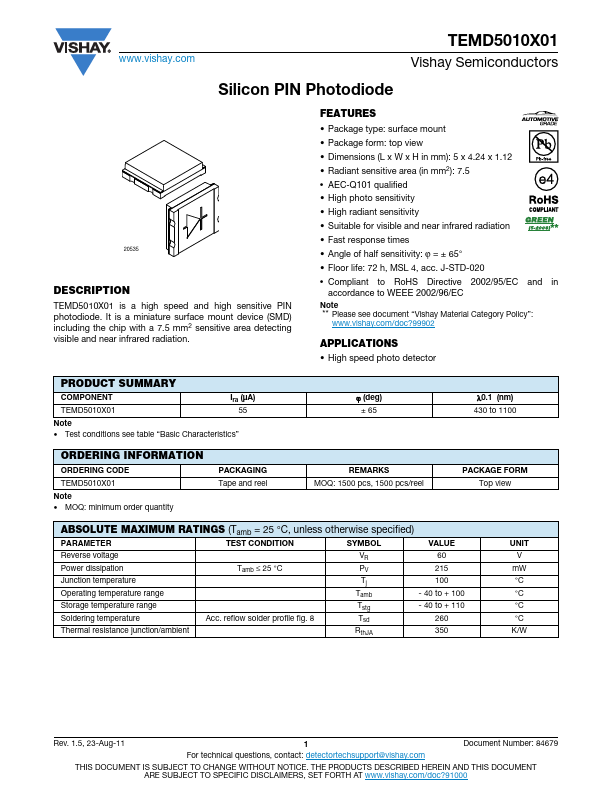

Preview of TEMD5010X01 PDF

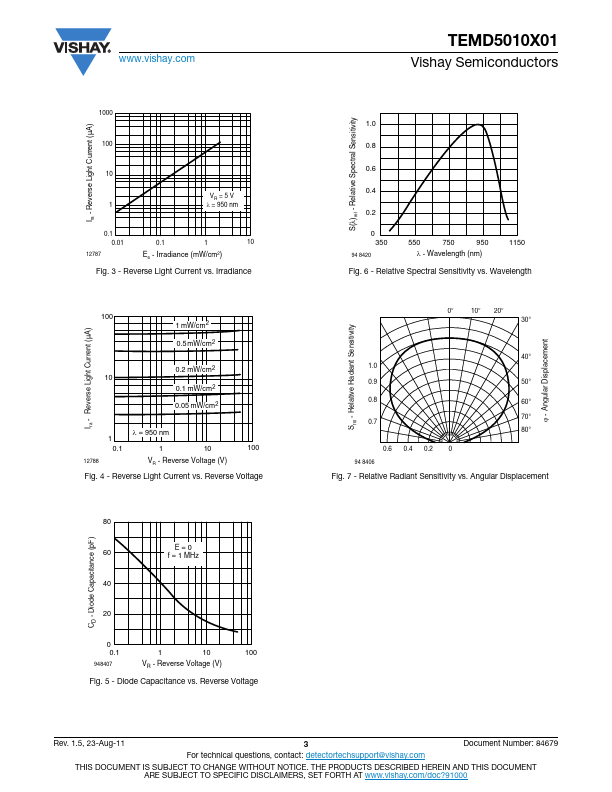

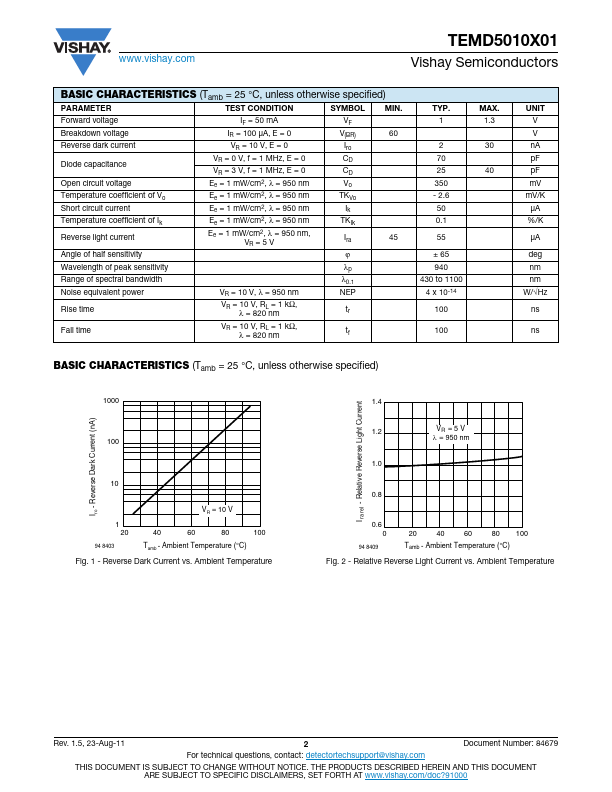

datasheet Preview Page 2 datasheet Preview Page 3
