TLWBG8900 - TELUX LED

Datasheet Summary

Description

The TELUX™ series is a clear, non diffused LED for applications where supreme luminous flux is required.

It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP technology.

Features

  • Utilizing one of the world’s brightest (AS) AllnGaP technologies.
  • High luminous flux.
  • Supreme heat dissipation: RthJP is 90 K/W.
  • High operating temperature: Tj = + 125 °C.
  • Meets SAE and ECE color requirements for the automobile industry for color red.
  • Packed in tubes for automatic insertion.
  • Luminous flux, forward voltage and color categorized for each tube.
  • Small mechanical tolerances allow precise usage of external refle.

📥 Download Datasheet

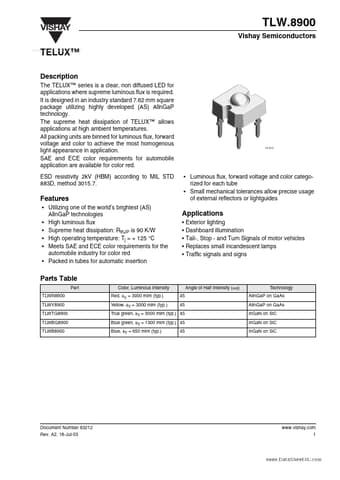

Datasheet preview – TLWBG8900

Datasheet Details

Part number TLWBG8900
Manufacturer Vishay Siliconix
File Size 550.05 KB
Description TELUX LED
Datasheet download datasheet TLWBG8900 Datasheet
Additional preview pages of the TLWBG8900 datasheet.

📁 Similar Datasheet

  • TLWBG7600 - TELUXE (Vishay Telefunken)
  • TLWB7600 - TELUXE (Vishay Telefunken)
  • TLWD1060 - LED Lamp (Toshiba Semiconductor)
  • TLWD1060T18 - LED Lamp (Toshiba Semiconductor)
  • TLWD1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWD1100T11 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWJ1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWK1100B - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWLF1100C - LED Lamp (Toshiba)
  • TLWLF1100D - LED Lamp (Toshiba)
Other Datasheets by Vishay Siliconix
  • TLWBG8600 - TELUX LED
  • TLWBG7900 - TELUX LED
  • TLWR8900 - Utilizing one of the world brightest AllnGaP technologies LED
  • TLWR990 - Utilizing one of the world brightest (AS) AllnGaP clear
  • TLWW9600 - TELUX-TM LED
  • TLWW9900 - TELUX LED
  • TLWY8900 - Utilizing one of the world brightest AllnGaP technologies LED

Full PDF Text Transcription

Click to expand full text
VISHAY www.DataSheet4U.com TLW.8900 Vishay Semiconductors TELUX™ Description The TELUX™ series is a clear, non diffused LED for applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux, forward voltage and color to achieve the most homogenous light appearance in application. SAE and ECE color requirements for automobile application are available for color red. ESD resistivity 2kV (HBM) according to MIL STD 883D, method 3015.7.
