TLWR990 - Utilizing one of the world brightest (AS) AllnGaP clear

Datasheet Summary

Description

The TELUX™ series is a clear, non diffused LED for applications where supreme luminous flux is required.

It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP technology.

Features

  • Utilizing one of the world’s brightest (AS) AllnGaP technologies.
  • High luminous flux.
  • Supreme heat dissipation: RthJP is 90 K/W.
  • High operating temperature: Tamb = - 40 to + 110 °C.
  • Meets SAE and ECE color requirements for the automobile industry for color red.
  • Packed in tubes for automatic insertion.
  • Luminous flux, forward voltage and color categorized for each tube.
  • Small mechanical tolerances allow precise usage of exter.

📥 Download Datasheet

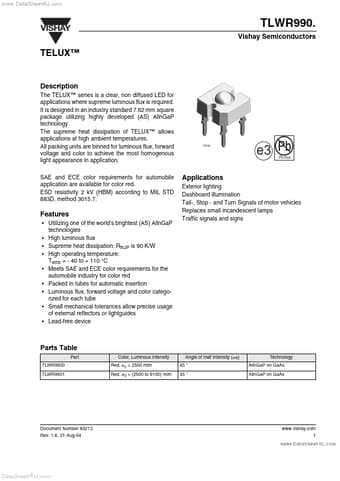

Datasheet preview – TLWR990

Datasheet Details

Part number TLWR990
Manufacturer Vishay Siliconix
File Size 364.35 KB
Description Utilizing one of the world brightest (AS) AllnGaP clear
Datasheet download datasheet TLWR990 Datasheet
Additional preview pages of the TLWR990 datasheet.

📁 Similar Datasheet

  • TLWR992 - TELUX / Utilizing one of the world brightest (AS) AllnGaP technologies (Vaishali Semiconductor)
  • TLWR7600 - TELUXE (Vishay Telefunken)
  • TLWR7900 - TELUXE (Vishay Telefunken)
  • TLWB7600 - TELUXE (Vishay Telefunken)
  • TLWBG7600 - TELUXE (Vishay Telefunken)
  • TLWD1060 - LED Lamp (Toshiba Semiconductor)
  • TLWD1060T18 - LED Lamp (Toshiba Semiconductor)
  • TLWD1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWD1100T11 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWJ1100 - Panel Circuit Indicator (Toshiba Semiconductor)
Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com VISHAY TLWR990. Vishay Semiconductors TELUX™ Description The TELUX™ series is a clear, non diffused LED for applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux, forward voltage and color to achieve the most homogenous light appearance in application. SAE and ECE color requirements for automobile application are available for color red. ESD resistivity 2 kV (HBM) according to MIL STD 883D, method 3015.7.
