TSOP322

IR Receiver Modules

TSOP322 Features

* Very low supply current

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Supply voltage: 2.5 V to 5.5 V

* Improved immunity against ambient light

* Insensitive to supply voltage ripple and noise

* Materia

TSOP322 General Description

The TSOP322.., TSOP348.., TSOP324.. and TSOP344.. series are miniaturized IR receiver modules for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a micropr.

TSOP322 Datasheet (272.15 KB)

Preview of TSOP322 PDF

Datasheet Details

Part number:

TSOP322

Manufacturer:

Vishay ↗ Siliconix

File Size:

272.15 KB

Description:

Ir receiver modules.

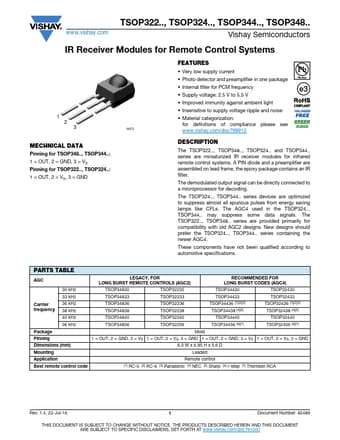

TSOP322.., TSOP324.., TSOP344.., TSOP348.. www.vishay.com Vishay Semiconductors IR Receiver Modules for Remote Control Systems 1 2 3 MECHNICAL DAT.
