VCNL4000 - Fully Integrated Proximity and Ambient Light Sensor

Vishay Siliconix

📥 Download Datasheet

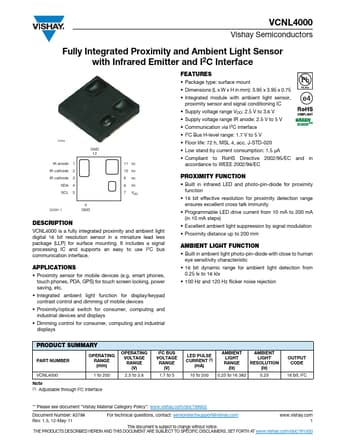

VCNL4000 Datasheet Preview — Preview of VCNL4000 PDF

Datasheet Details

Part number: VCNL4000
Manufacturer: Vishay ↗ Siliconix
File Size: 258.65 KB
Datasheet: VCNL4000_VishaySiliconix.pdf
Description: Fully Integrated Proximity and Ambient Light Sensor

VCNL4000 Product details

Description

VCNL4000 is a fully integrated proximity and ambient light digital 16 bit resolution sensor in a miniature lead less package (LLP) for surface mounting.

Features

Package type: surface mount.
Dimensions (L x W x H in mm): 3.95 x 3.95 x 0.75.
Integrated module with ambient light sensor, proximity sensor and signal conditioning IC.
Supply voltage range VDD: 2.5 V to 3.6 V.
Supply voltage range IR anode: 2.5 V to 5 V.
Communication via I2C interface.
I2C Bus H-level range: 1.7 V to 5 V 22296.
Floor life: 72 h, MSL 4, acc. J-STD-020 GND 12.
Low stand by current consumption: 1.
