VCNL4020 - Fully Integrated Proximity and Ambient Light Sensor

Vishay

📥 Download Datasheet

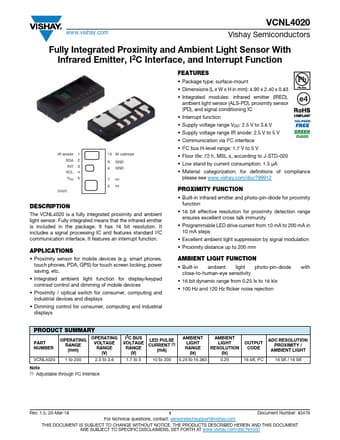

VCNL4020 Datasheet Preview — Preview of VCNL4020 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VCNL4020
Manufacturer: Vishay ↗
File Size: 213.90 KB
Datasheet: VCNL4020_Vishay.pdf
Description: Fully Integrated Proximity and Ambient Light Sensor

VCNL4020 Product details

Description

The VCNL4020 is a fully integrated proximity and ambient light sensor.

Features

Package type: surface mount.
Dimensions (L x W x H in mm): 4.90 x 2.40 x 0.83.
Integrated infrared emitter, ambient light sensor, proximity sensor, and signal conditioning IC.
Interrupt function.
Supply voltage range VDD: 2.5 V to 3.6 V.
Supply voltage range IR anode: 2.5 V to 5 V.
Communication via I2C interface.
I2C Bus H-level range: 1.7 V to 5 V.
Floor life: 72 h, MSL 4, acc. J-STD-020 IR anode SDA INT SCL VDD.
