VSKD236-xxPBF, VSKD166-04PBF, Standard Recovery Diodes

www.DataSheet.co.kr VSK.166..PbF, VSK.196..PbF, VSK.236..PbF Series Vishay Semiconductors Standard Recovery Diodes, 165 A to 230 A (INT-A-PAK Power .

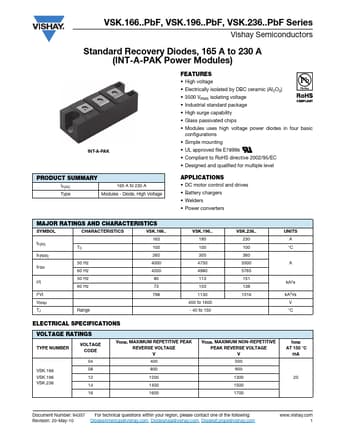

datasheet Preview Page 1 from Datasheet4u.com

VSKD166-04PBF_VishaySiliconix.pdf

VSKD236-xxPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKD236-xxPBF, VSKD166-04PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VSKD236-xxPBF, VSKD166-04PBF

Manufacturer:

Vishay ↗ Siliconix

File Size:

347.28 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VSKD236-xxPBF, VSKD166-04PBF.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Electrically isolated by DBC ceramic (AI2O3)
* 3500 VRMS isolating voltage
* Industrial standard package
* High surge capability
* Glass passivated chips
* Modules uses high voltage power diodes in four basic configurations

Applications

* DC motor control and drives
* Battery chargers
* Welders
* Power converters MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) IF(RMS) IFSM I2t I2t VRRM TJ Range 50 Hz 60 Hz 50 Hz 60 Hz CHARACTERISTICS VSK.166.. 165 TC 100 260 4000 4200 80 73 798 VSK.196.. 195 100 30
