VSKD320, VSKD250, Standard Recovery Diodes

www.DataSheet.co.kr VSK.250, VSK.270, VSK.320 Series Vishay High Power Products Standard Recovery Diodes, 250 to 320 A (MAGN-A-PAKTM Power Modules) .
This new VSK series of MAGN-A-PAKsTM uses high voltage power diodes in two basic configurations.

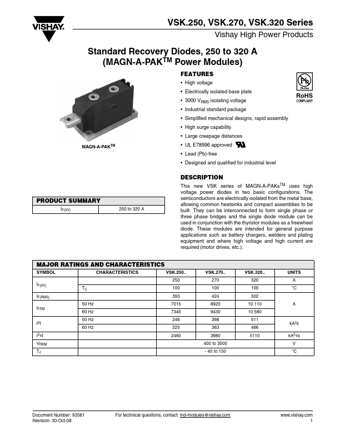

datasheet Preview Page 1 from Datasheet4u.com

VSKD250_VishaySiliconix.pdf

VSKD320 Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKD320, VSKD250. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VSKD320, VSKD250

Manufacturer:

Vishay ↗ Siliconix

File Size:

346.69 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VSKD320, VSKD250.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Electrically isolated base plate
* 3000 VRMS isolating voltage
* Industrial standard package
* Simplified mechanical designs, rapid assembly
* High surge capability
* Large creepage distances MAGN-A-PAKTM RoHS COMPLIANT

Applications

* such as battery chargers, welders and plating equipment and where high voltage and high current are required (motor drives, etc. ). PRODUCT SUMMARY IF(AV) 250 to 320 A MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) IF(RMS) IFSM I2 t I2 √ t VRRM TJ 50 Hz 60 Hz 50 Hz 60 Hz CHARACTERISTICS VSK.250..
