BA679S - RF PIN Diode

BA679S Description

www.vishay.com BA679, BA679S Vishay Semiconductors RF PIN Diodes - Single in MiniMELF (SOD-80) DESIGN SUPPORT TOOLS click logo to get started Model.

BA679S Features

* Wide frequency range 10 MHz to 1 GHz
* AEC-Q101 qualified

BA679S Applications

* Current controlled HF resistance in adjustable attenuators MECHANICAL DATA Case: MiniMELF (SOD-80) Weight: approx. 31 mg Cathode band color: black Packaging codes/options: GS18/10K per 13" reel (8 mm tape), 10K/box GS08/2.5K per 7" reel (8 mm tape), 12.5K/box PARTS TABLE PART TYPE DIFFE

📥 Download Datasheet

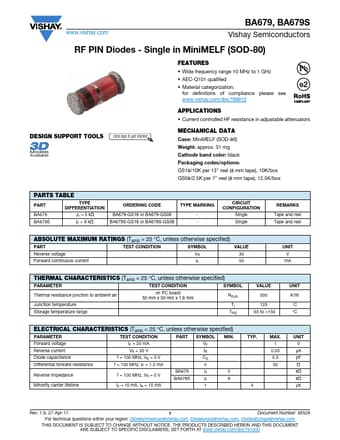

Preview of BA679S PDF
datasheet Preview Page 2 datasheet Preview Page 3
