BA679S-M, BA679-M - RF PIN Diodes

BA679S-M Description

www.vishay.com BA679-M, BA679S-M Vishay Semiconductors RF PIN Diodes - Single in MiniMELF (SOD-80) DESIGN SUPPORT TOOLS click logo to get started M.

BA679S-M Features

* Wide frequency range 10 MHz to 1 GHz
* AEC-Q101 qualified

BA679S-M Applications

* Current controlled HF resistance in adjustable attenuators MECHANICAL DATA Case: MiniMELF (SOD-80) Weight: approx. 31 mg Cathode band color: black Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/2.5K per 7" reel (8 mm tape), 12.5K/box PARTS TABLE PART TYPE DIFFERENT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BA679S-M, BA679-M. Please refer to the document for exact specifications by model.

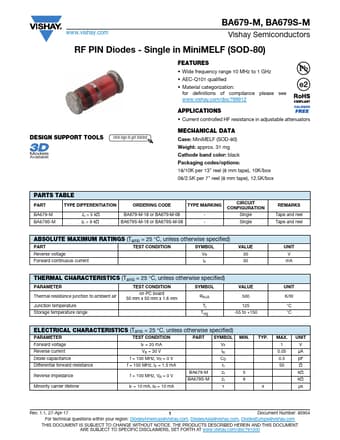

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA679S-M, BA679-M
Manufacturer
Vishay ↗
File Size
91.38 KB
Datasheet
BA679-M-Vishay.pdf
Description
RF PIN Diodes
Note
This datasheet PDF includes multiple part numbers: BA679S-M, BA679-M.
Please refer to the document for exact specifications by model.
