BA651

Strain Gage Amplifier

BA651 Features

* Bi-directional output (voltage version only) 19 to 28 VDC power Wide range span adjustment Wide range zero adjustment DIN-rail mount www.DataSheet4U.com Specifications Power supply VDC 24V (19 to 28V) Accuracy class at 2mV/V Potentiometer adjustm

BA651 General Description

The BA651 is a instrumentation amplifier in rail mount housing according to DIN 50022-35. It is designed to provide a low drift signal conditioning for full bridge strain gage sensors. The ±10V analog output is fully bi-directional. A internal voltage reference provides the excitation for a 350 ohms.

BA651 Datasheet (141.85 KB)

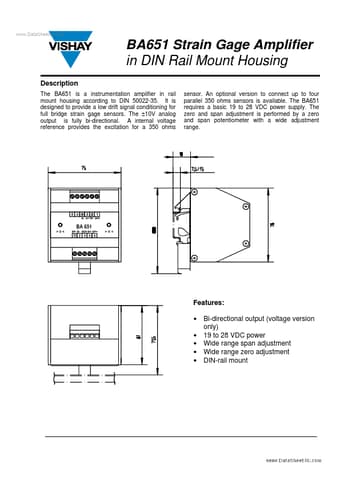

Preview of BA651 PDF

Datasheet Details

Part number:

BA651

Manufacturer:

Vishay ↗

File Size:

141.85 KB

Description:

Strain gage amplifier.
