BA6569AS Speech network for telephones

BA6569AS / BA6569AFP 233 Communication ICs BA6569AS / BA6569AFP FOperation notes The maximum power dissipation for the BA6569AS is 1100mW, and for the BA6569AFP, the maximum power dissipation is 1200mW (when mounted on 90mm 50mm 1.6mm glass epoxy boards, however, fins should be soldered to the.

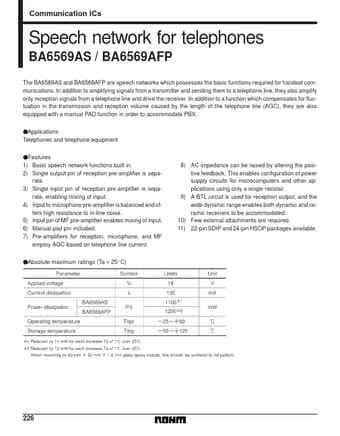

Communication ICs Speech network for telephones BA6569AS / BA6569AFP The BA6569AS and BA6569AFP are speech networks which possesses the basic functions required for handset communications. In addition to amplifying signals from a transmitter and sending them to a telephone line, they also amplify only reception signals from a telephone line and drive the receiver. In addition to a function which compensates for fluctuation in the transmission and reception volume caused by the length of the tel.

BA6569AS Features

* 1) Basic speech network functions built in. 2) Single output pin of reception pre-amplifier is separate. 3) Single input pin of reception pre-amplifier is separate, enabling mixing of input. 4) Input to microphone pre-amplifier is balanced and offers high resistance to in-line noise. 5) Input pin of
