BA6569AFP - Speech network for telephones

Rohm

📥 Download Datasheet

BA6569AFP Datasheet Preview — Preview of BA6569AFP PDF

Datasheet Details

Part number: BA6569AFP
Manufacturer: ROHM ↗
File Size: 255.44 KB
Datasheet: BA6569AFP_Rohm.pdf
Description: Speech network for telephones

BA6569AFP Product details

Description

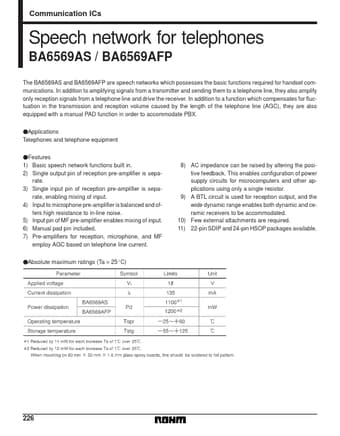

BA6569AS / BA6569AFP 233 Communication ICs BA6569AS / BA6569AFP FOperation notes The maximum power dissipation for the BA6569AS is 1100mW, and for the BA6569AFP, the maximum power dissipation is 1200mW (when mounted on 90mm 50mm 1.6mm glass epoxy boards, however, fins should be soldered to the foil pattern).Since the maximum power dissipation varies with temperature, the product of the applied voltage VL and the total current drawn by the IC, after factoring in the temperature, should not

Features

1) Basic speech network functions built in. 2) Single output pin of reception pre-amplifier is separate. 3) Single input pin of reception pre-amplifier is separate, enabling mixing of input. 4) Input to microphone pre-amplifier is balanced and offers high resistance to in-line noise. 5) Input pin of MF pre-amplifier enables mixing of input. 6) Manual pad pin included. 7) Pre-amplifiers for reception, microphone, and MF employ AGC based on telephone line current. FAbsolute maximum ratings (Ta = 2.
