BAQ135, Small Signal Switching Diode

www.vishay.com BAQ133, BAQ134, BAQ135 Vishay Semiconductors Small Signal Switching Diodes, Low Leakage Current DESIGN SUPPORT TOOLS click logo to g.

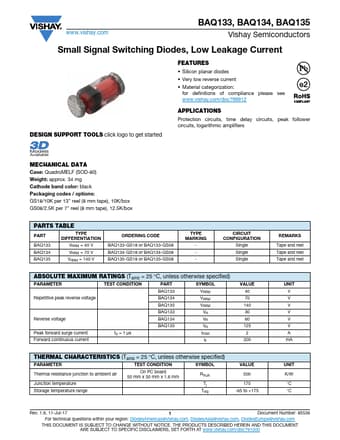

datasheet Preview Page 1 from Datasheet4u.com

BAQ135_VishayTelefunken.pdf

BAQ135 Datasheet Preview — Preview of BAQ135 PDF

Datasheet Details

Part number:

BAQ135

Manufacturer:

Vishay ↗ Telefunken

File Size:

94.44 KB

Description:

Small Signal Switching Diode

Features

* Silicon planar diodes
* Very low reverse current

Applications

* Protection circuits, time delay circuits, peak follower circuits, logarithmic amplifiers Models Available MECHANICAL DATA Case: QuadroMELF (SOD-80) Weight: approx. 34 mg Cathode band color: black Packaging codes / options: GS18/10K per 13" reel (8 mm tape), 10K/box GS08/2.5K per 7" reel (8 mm tape)
