BAV100, Silicon Epitaxial Planar Diodes

www.vishay.com BAV100, BAV101, BAV102, BAV103 Vishay Semiconductors Small Signal Switching Diodes, High Voltage .

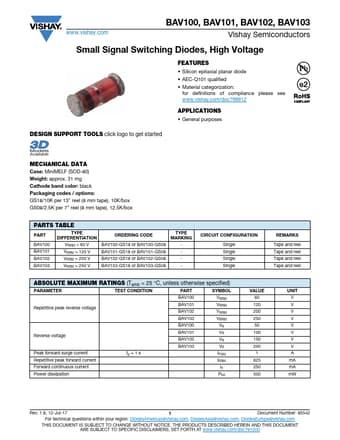

datasheet Preview Page 1 from Datasheet4u.com

BAV100_VishayTelefunken.pdf

BAV100 Datasheet Preview — Preview of BAV100 PDF

Datasheet Details

Part number:

BAV100

Manufacturer:

Vishay ↗ Telefunken

File Size:

81.59 KB

Description:

Silicon Epitaxial Planar Diodes

Features

* Silicon epitaxial planar diode
* AEC-Q101 qualified

Applications

* General purposes DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: MiniMELF (SOD-80) Weight: approx. 31 mg Cathode band color: black Packaging codes / options: GS18/10K per 13" reel (8 mm tape), 10K/box GS08/2.5K per 7" reel (8 mm tape), 12.5K/box PAR
