K817P1

Optocoupler

Vishay Telefunken

K817P1 Features

* Endstackable to 2.54 mm (0.1") spacing

* DC isolation test voltage 5000 VRMS

* Current transfer ratio (CTR) selected into groups

* Low temperature coefficient of CTR

* Wide ambient temperature range

* Available in single, dual and quad channel packag

K817P1 General Description

In the K817P part each channel consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4 pin (single) plastic dual inline package. AGENCY APPROVALS

* BSI: EN 60065:2002, EN 60950-1:2006

* DIN EN 60747-5-2 (VDE 0884)

* FIMKO

*.

K817P1 Datasheet (142.97 KB)

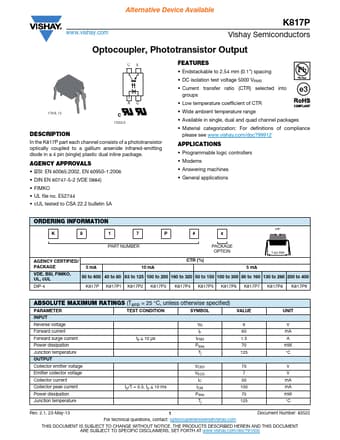

K817P1 Datasheet Preview — Preview of K817P1 PDF

Datasheet Details

Part number:

K817P1

Manufacturer:

Vishay ↗ Telefunken

File Size:

142.97 KB

Description:

Optocoupler.
www.vishay.com Alternative Device Available K817P Vishay Semiconductors Optocoupler, Phototransistor Output CE 1 AC 17918_13 C 17203-5 DESCRIP.
