K814P

Optocoupler

K814P Features

* Endstackable to 2.54 mm (0.1") spacing

* DC isolation test voltage VISO = 5000 VRMS

* Low coupling capacitance of typical 0.3 pF

* Current transfer ratio (CTR) of typical 100 %

* Low temperature coefficient of CTR

* Wide ambient temperature range

K814P General Description

The K814P, K824P, K844P consist of a phototransistor optically coupled to 2 gallium arsenide infrared emitting diodes (reverse polarity) in 4 pin (single); 8 pin (dual) or 16-pin (quad) plastic dual inline package. The elements are mounted on one leadframe providing a fixed distance between input an.

K814P Datasheet (185.05 KB)

Preview of K814P PDF

Datasheet Details

Part number:

K814P

Manufacturer:

Vishay ↗

File Size:

185.05 KB

Description:

Optocoupler.

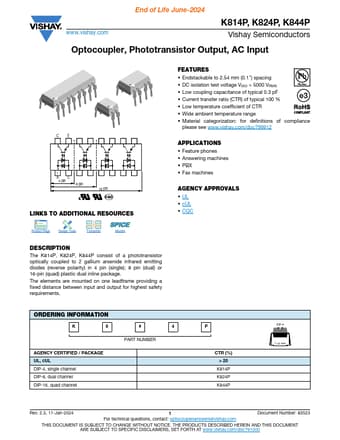

www.vishay.com End of Life June-2024 K814P, K824P, K844P Vishay Semiconductors Optocoupler, Phototransistor Output, AC Input C E 1 A C 4 pin .
