25TTS08S Surface Mountable Phase Control SCR

25TTS08S Description

25TTSS High Voltage Series Vishay High Power Products Surface Mountable Phase Control SCR, 16 A Anode 2 D2PAK 13 Cathode Gate PRODUCT SUMMARY VT .
FEATURES The 25TTSS High Voltage Series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applic.

25TTS08S Applications

* The glass passivation technology used has reliable operation up to 125 °C junction temperature. Typical applications are in input rectification (soft start) and these products are designed to be used with Vishay HPP input diodes, switches and output rectifiers which are available in identical packa

📥 Download Datasheet

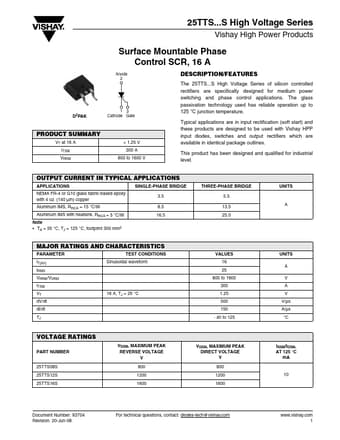

Preview of 25TTS08S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
25TTS08S
Manufacturer
Vishay ↗
File Size
123.88 KB
Datasheet
25TTS08S-Vishay.pdf
Description
Surface Mountable Phase Control SCR
