357B0103MAB251S22, 357 Datasheet - Vishay

357B0103MAB251S22, 357, Conductive Plastic Potentiometer

Model 357 Vishay Spectrol (22.2 mm) Conductive Plastic Potentiometer, Bushing Mount Type .
357 MODEL B STYLE Bushing 0 0 FEATURES Non turn pin and continuous rotation 10K OHMIC VALUE 20 % TOLERANCE ON OHMIC VALUE A BO50 0 P 22 SHAFT TYPE Sha.

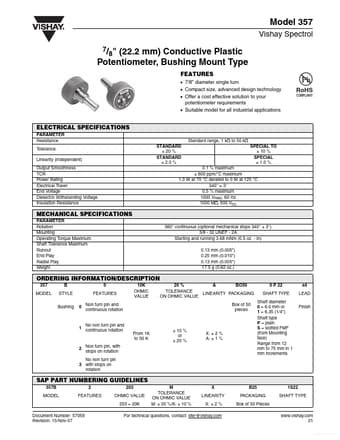

datasheet Preview Page 1 from Datasheet4u.com

357-Vishay.pdf

357B0103MAB251S22 Datasheet Preview — This datasheet PDF includes multiple part numbers: 357B0103MAB251S22, 357. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

357B0103MAB251S22, 357

Manufacturer:

Vishay ↗

File Size:

252.28 KB

Description:

Conductive Plastic Potentiometer

Note:

This datasheet PDF includes multiple part numbers: 357B0103MAB251S22, 357.
Please refer to the document for exact specifications by model.

Features

* 7/8" diameter single turn
* Compact size, advanced design technology
* Offer a cost effective solution to your potentiometer requirements

Applications

* 7/ 8" RoHS COMPLIANT ELECTRICAL SPECIFICATIONS PARAMETER Resistance Tolerance Linearity (Independent) Output Smoothness TCR Power Rating Electrical Travel End Voltage Dielectric Withstanding Voltage Insulation Resistance STANDARD ± 20 % STANDARD ± 2.0 % Standard range, 1 kΩ to 50 kΩ SPECIAL TO ±
