562R5GAT15, 562R5GAT10 - Lower Voltage Ceramic DC Disc Capacitor

Vishay

📥 Download Datasheet

562R5GAT15 Datasheet Preview — This datasheet PDF includes multiple part numbers: 562R5GAT15, 562R5GAT10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	562R5GAT15, 562R5GAT10
Manufacturer	Vishay
File Size	59.99 KB
Description	Lower Voltage Ceramic DC Disc Capacitor
Datasheet	562R5GAT10-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: 562R5GAT15, 562R5GAT10. Please refer to the document for exact specifications by model.

562R5GAT15 Product details

Description

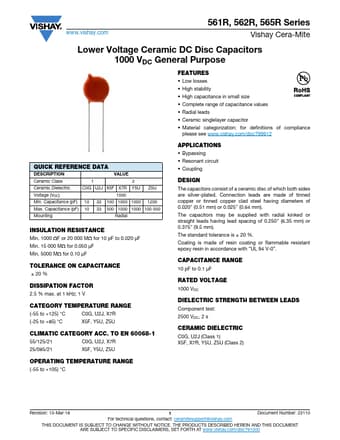

VALUE Ceramic Class 1 2 Ceramic Dielectric C0G U2J X5F X7R Y5U Z5U Voltage (VDC) 1000 Min.Capacitance (pF) 10 33 100 1000 1000 1200 Max.Capacitance (pF) 10 33 500 1000 1000 100 000 Mounting Radial INSULATION RESISTANCE Min.1000 F or 20 000 M for 10 pF to 0.020 μF Min.15 000 M for 0.050 μF Min.5000 M for 0.10 μF TOLERANCE ON CAPACITANCE ± 20 % DISSIPATION FACTOR 2.5 % max.at 1 kHz; 1 V CATEGORY TEMPERATURE RANGE (-55 to +125) °C C0G, U2J, X7R (-25 to +85) °C X5F, Y5U

Features

Low losses.
High stability.
High capacitance in small size.
Complete range of capacitance values.
Radial leads.
Ceramic singlelayer capacitor.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 QUICK.
