562R5GAT20, 562R5GAT10 Lower Voltage Ceramic DC Disc Capacitor

562R5GAT20 Description

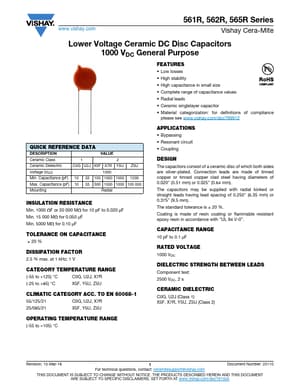

www.vishay.com 561R, 562R, 565R Series Vishay Cera-Mite Lower Voltage Ceramic DC Disc Capacitors 1000 VDC General Purpose .
VALUE Ceramic Class 1 2 Ceramic Dielectric C0G U2J X5F X7R Y5U Z5U Voltage (VDC) 1000 Min.

562R5GAT20 Features

* Low losses
* High stability
* High capacitance in small size
* Complete range of capacitance values
* Radial leads
* Ceramic singlelayer capacitor
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Q

562R5GAT20 Applications

* Bypassing
* Resonant circuit
* Coupling DESIGN The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper or tinned copper clad steel having diameters of 0.020" (0.51 mm) or 0.025" (0.64 mm). The capacitors may
