564R20TSD18, 564R20TST10, Lower Voltage Ceramic Singlelayer DC Disc Capacitors

www.vishay.com 564R and 565R Series Vishay Cera-Mite Lower Voltage Ceramic Singlelayer DC Disc Capacitors 2 kVDC to 7.5 kVDC .
VALUE Ceramic Class 1 2 Ceramic Dielectric U2J, R3L C0G, U2J, R3L X7R, Y5S, Y5U, Z5U, Y5V X5F, X5R, X5S, X7R, Y5S, Y5U, Z5U X5F, X5S, Y5U, Z.

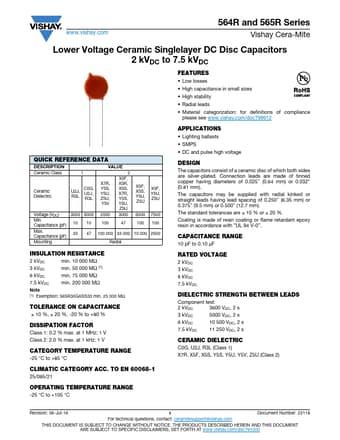

datasheet Preview Page 1 from Datasheet4u.com

564R20TST10-Vishay.pdf

564R20TSD18 Datasheet Preview — This datasheet PDF includes multiple part numbers: 564R20TSD18, 564R20TST10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

564R20TSD18, 564R20TST10

Manufacturer:

Vishay ↗

File Size:

77.56 KB

Description:

Lower Voltage Ceramic Singlelayer DC Disc Capacitors

Note:

This datasheet PDF includes multiple part numbers: 564R20TSD18, 564R20TST10.
Please refer to the document for exact specifications by model.

Features

* Low losses
* High capacitance in small sizes
* High stability
* Radial leads

Applications

* Lighting ballasts
* SMPS
* DC and pulse high voltage DESIGN The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper having diameters of 0.025" (0.64 mm) or 0.032" (0.81 mm). The capacitors may be supplied wi
