564R20TSD39 Datasheet, Capacitors, Vishay

564R20TSD39 Features

• Capacitors
• Low losses
• High capacitance in small sizes
• High stability
• Radial leads
• Material categorization: for definitions of compliance please se

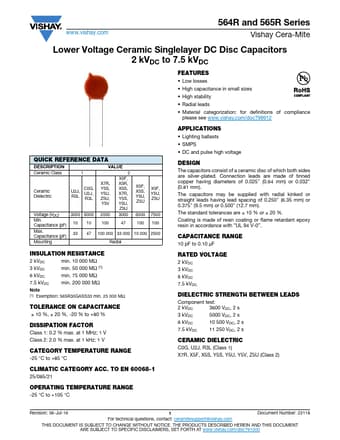

PDF File Details

Part number:

564R20TSD39

Manufacturer:

Vishay ↗

File Size:

77.56kb

Download:

📄 Datasheet

Description:

Lower voltage ceramic singlelayer dc disc capacitors. VALUE Ceramic Class 1 2 Ceramic Dielectric U2J, R3L C0G, U2J, R3L X7R, Y5S, Y5U, Z5U, Y5V X5F, X5R, X5S, X7R, Y5S, Y5U, Z5U

564R20TSD39 Application

• Applications
• Lighting ballasts
• SMPS
• DC and pulse high voltage DESIGN The capacitors consist of a ceramic disc of which
