AS1PM, AS1PD Standard Avalanche Surface Mount Rectifiers

AS1PM Description

www.vishay.com AS1PD, AS1PG, AS1PJ, AS1PK, AS1PM Vishay General Semiconductor Standard Avalanche Surface Mount Rectifiers eSMP® Series SMP (DO-220.

AS1PM Features

* Glass passivated pellet chip junction Available
* Very low profile - typical height of 1.0 mm
* Ideal for automated placement
* Controlled avalanche characteristics
* Low forward voltage drop
* Low leakage current
* Meets MSL level 1,

AS1PM Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication. MECHANICAL DATA Case: SMP (DO-220AA) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and comme

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AS1PM, AS1PD. Please refer to the document for exact specifications by model.

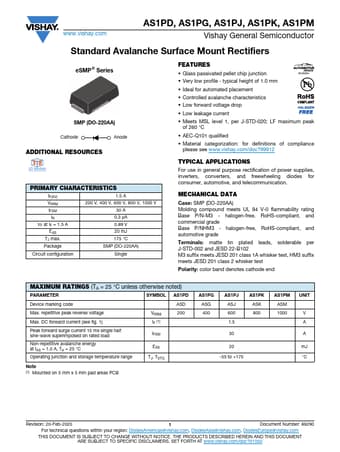

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS1PM, AS1PD
Manufacturer
Vishay ↗
File Size
92.85 KB
Datasheet
AS1PD_Vishay.pdf
Description
Standard Avalanche Surface Mount Rectifiers
Note
This datasheet PDF includes multiple part numbers: AS1PM, AS1PD.
Please refer to the document for exact specifications by model.
