AU3PG, AU3PD Ultrafast Avalanche Surface Mount Rectifiers

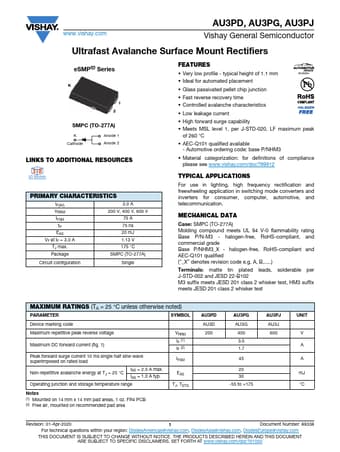

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com AU3PD, AU3PG, AU3PJ Vishay General Semiconductor Ultrafast Avalanche Surface Mount Rectifiers eSMPĀ® Series K 1 2 SMPC (TO-277A) K.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AU3PG, AU3PD. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AU3PG, AU3PD
Manufacturer
Vishay ↗
File Size
94.32 KB
Datasheet
AU3PD-Vishay.pdf
Description
Ultrafast Avalanche Surface Mount Rectifiers
Note
This datasheet PDF includes multiple part numbers: AU3PG, AU3PD.
Please refer to the document for exact specifications by model.

Features

* Very low profile - typical height of 1.1 mm Available
* Ideal for automated placement
* Glass passivated pellet chip junction
* Fast reverse recovery time
* Controlled avalanche characteristics
* Low leakage current
* High forward sur

Applications

* For use in lighting, high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive, and telecommunication. MECHANICAL DATA Case: SMPC (TO-277A) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free,
