AU3PM - Ultrafast Avalanche Surface Mount Rectifiers

Product Overview

Vishay

📥 Download Datasheet

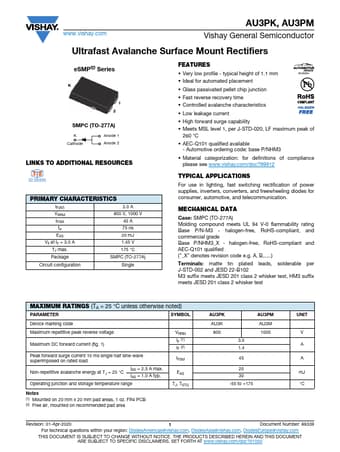

AU3PM Ultrafast Avalanche Surface Mount Rectifiers by Vishay - Datasheet Preview — Datasheet preview – AU3PM

Datasheet Details

Part number	AU3PM
Manufacturer	Vishay
File Size	94.33 KB
Description	Ultrafast Avalanche Surface Mount Rectifiers
Datasheet	AU3PM Datasheet
Note	This datasheet PDF includes multiple part numbers: AU3PM, AU3PK. Please refer to the document for exact specifications by model.
Additional preview pages of the AU3PM datasheet.

Product details

Features

Very low profile - typical height of 1.1 mm Available.
Ideal for automated placement.
Glass passivated pellet chip junction.
Fast reverse recovery time.
Controlled avalanche characteristics.
Low leakage current.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHM3.
Material categorization:.
